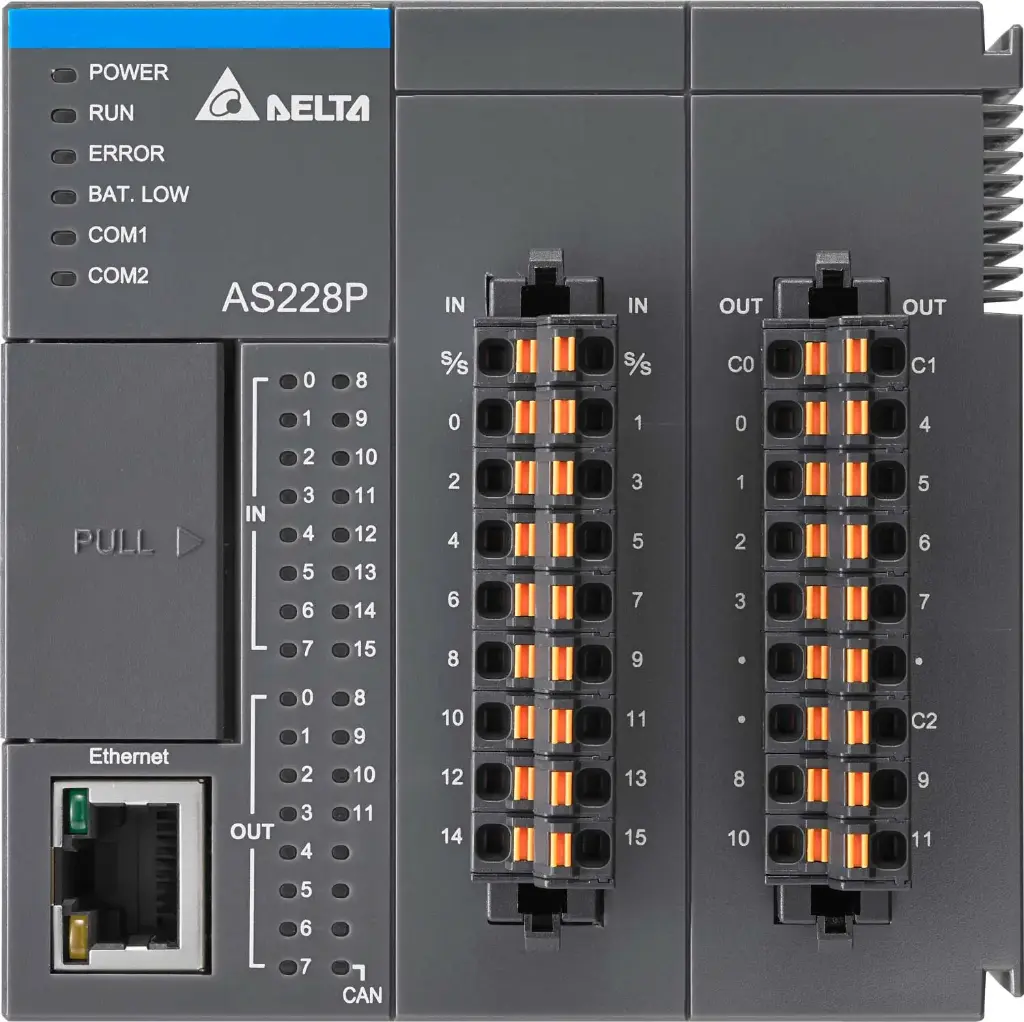

CPU 256KB(64K step) 16DI 12DO PNP Ethernet 2*RS485 CAN SD

Powerful PLC in the AS series with fast processing time 7ns/bit instruction for demanding machine controls, modular expansion with mounting on DIN rail, easy and cost-effective to connect up to 8 Delta servo drives with CANopen with ready-made function blocks. Free software according to IEC 61131-3.

• Memory: 256KB with 64K program steps

• Digital Input: 16, High-speed counter 200kHz, max 1024

• Digital Output: 12, Transistor PNP, High speed output 200kHz, max 1024

• Communication: USB, Modbus TCP/IP, EtherNet/IP, RS485, CANopen

• Supply: 24VDC or with expansion module 230VAC

• Application: Perfect for Machine Builders, Servo Systems, Building Automation
